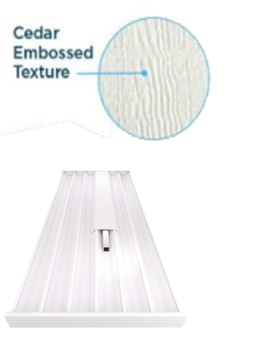

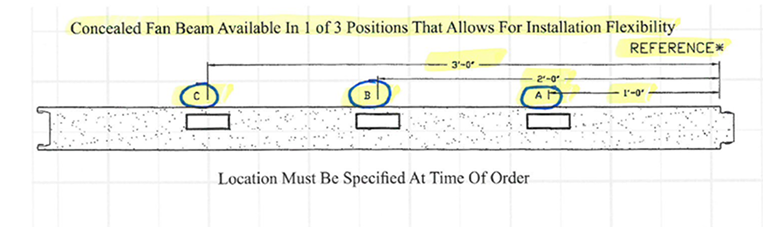

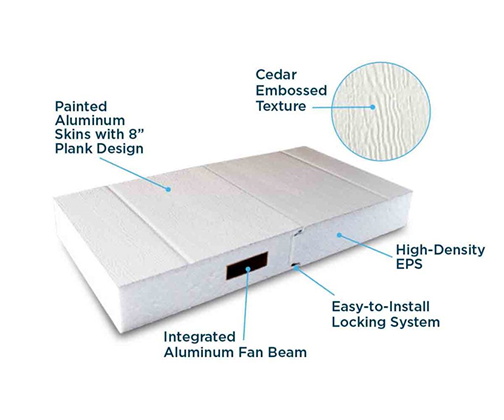

This fan beam serves as a support for a ceiling fan and provides a conduit for wiring. Made with aluminum and measures 2″ x 3″ x .070″; the fan beams are in the middle of the 4’ foot-wide roof panel and runs the entire length. Since its internal, the fan beam will not be visible from above or below. The fan beam serves a couple of function which includes support for the ceiling fan and a conduit for wiring the and any lighting. If your project includes fans and/or lights, you will want to order your kit with fan beams accordingly. Please Note: By default, fan beams are ordered in the center of the roof panel unless you request different fan beam placement.

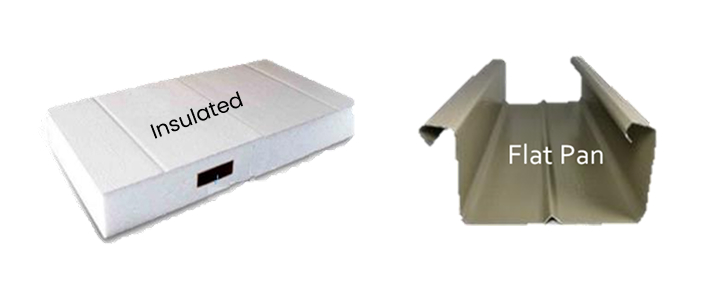

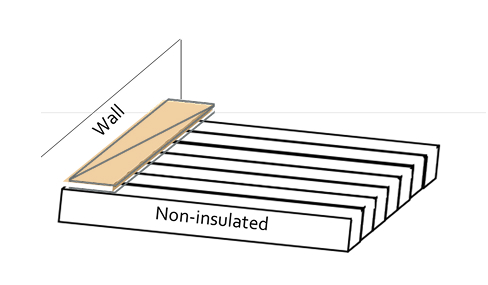

The non insulated fan beam is 2”X 2” inch square extruded aluminum tube positioned on top of the roof panel, attached to the rolled form ledger on the house, and extending the header beam. A fan beam cover cap is added over the fan beam and roof panel. This combination provide support for the fan and protects the fan and electrical components from the elements and prevents water intrusion. For led lighting, only the fan beam covers are used to protect the wiring from the elements and water intrusion. If your project includes fans and/or lights, you will want to order your kit with fan beams covers accordingly.
